CPU |
2x Hygon 3 cpu,225w TDP |
|
Memory |
32x DDR4 DIMM Slots, Up to 3200MT/s |
|
NIC On Board |
2x 1GbE Port 1x 1GbE dedicate IPMI Port |
|
Storage |
Front: 12x LFF SATA/SAS or 24x SFF SATA/SAS Drive slot Rear: 2x SFF SAS/SATA/SSD Drive Slot Internal：2x M.2 SSD,2x SD |
|
Controler |
SATA3 (6Gbps) controler on board optional SAS controler（12G）， RAID0，1，10, optional RAID controler（12G） 2G cache， RAID0/1/10/5/50/6/60 |
|
Pcie slot |
Max 10x PCIe Card(including 1x slot for storage and 1x OCP slot) |
|
I/O |
4x Front & 2x Rear USB 1x PWR BTN with LED 1x Front VGA +1x Rear VGA |
|
BMC |
IPMI 2.0 management |
|
PSU |
1+1 Redundant 185mm CRPS 550W/800W/1200W |
|
Temperature |
5~35℃ |
|
Dimensions |
87mm (H) x 438mm (W) x 735mm (D) |

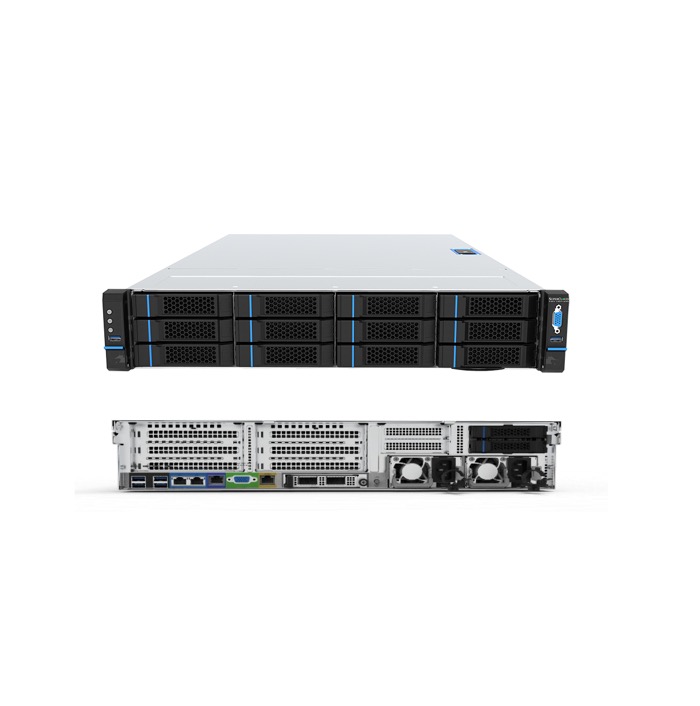

Server
System of Chinese CPU platform-Hygon
R3216 is a 2-socket server with high performance based on domestic X86 architecture. It can provide enterprise-level computing, strong scalability and outstanding hardware & software compatibility. It is applicable to IT core business, cloud computing, high performance computing, HDFS, big data processing, enterprises and telecom and other complex business. High reliability, easy management and easy deployment are also its advantages.
