CPU |
1x Phytium FT2000+(64c,2.2GHz) |
|
Memory |
8x DDR4 DIMM Slots, Up to 2933MT/s |
|
NIC On Board |
2x 1GbE Port 1x 1GbE dedicate IPMI Port |
|
|
8x LFF SATA/SAS Drive slot,support hotswap 12x LFF SATA/SAS Drive slot,support hotswap 24x SFF SATA/SAS Drive slot,support hotswap 8x LFF SATA/SAS Drive slot ,support hotswap(4 slot could be anybay,no hotswap,no Raid) Rear: 2x SFF SAS/SATA/Nvme Drive Slot(NVMe not support hotswap) Internal:1x M.2 SATA/NVMe |
|
Controler |
SATA3 (6Gbps) controler on board，3 ports optional RAID controler（12G） 2G cache， RAID0/1/10/5/50/6/60 |
|
Pcie slot |
2x PCIe Gen4 x16 Card, and 2x OCP 3.0. |
|
Pcie slot |
Max 7x PCIe 3.0 slot |
|
IO |
2x Front & 2x Rear USB 2.0 1x PWR BTN with LED 1x VGA 1x Rear COM port |
|
BMC |
IPMI 2.0 management |
|
PSU |
1+1 Redundant 185mm CRPS 500W/800W(90 V~264 V AC or 200 V ~ 300 V DC) |
|
Temperature |
5~35℃ |
|
Dimensions |
87mm(H)×438mm(W)×660 mm(D) |

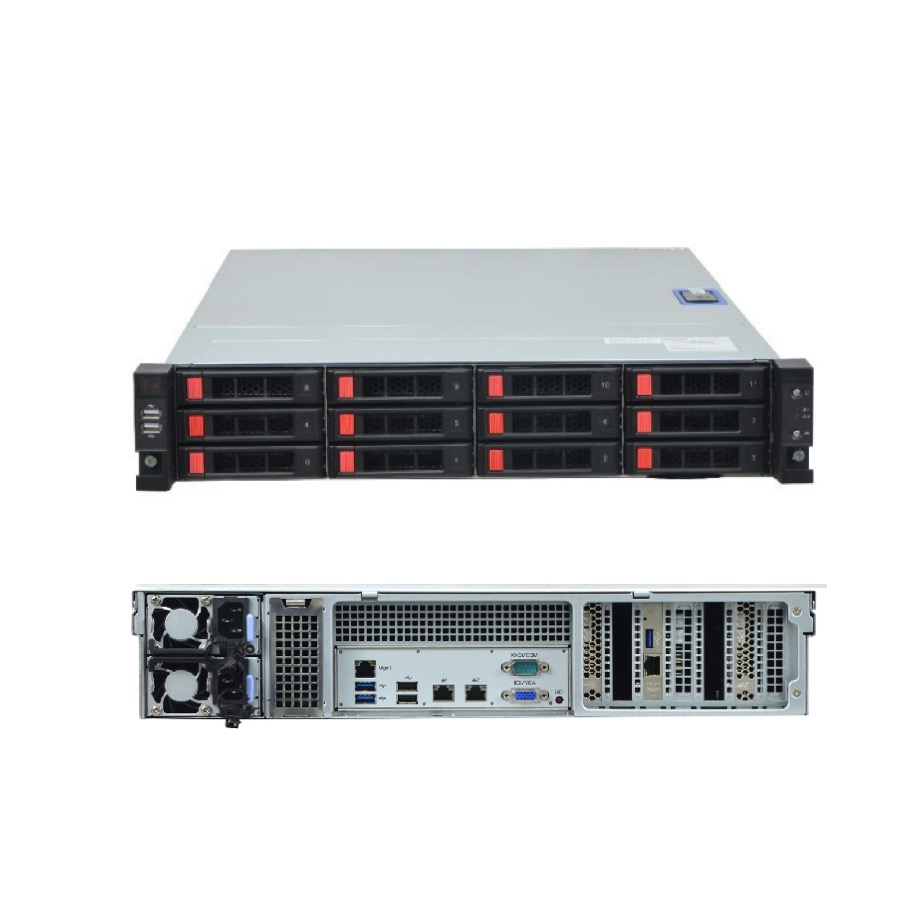

Server
Phytium-R2211
R2211 is a 2U rackmount server based on Phytium FT2000+ processor with one socket, supporting 8 DDR4 DIMMs, 7 PCIe slots and large capacity local storage sources with flexible configurations, widely used in cloud computing, database, big data, etc. For management, it can support IPMI2.0 and provide state surveillance and KVM to realize remote fault diagnosis and alert, reducing the difficulty of maintenance and improving the maintenance efficiency for data center.
