CPU |
2x kunpeng920 cpu（48/64c 2.6GHz） |
|
Memory |
24/32核机型16个DDR4-2933 DIMM插槽； 48/64核机型32个DDR4-2933 DIMM插槽 |
|
NIC On Board |
4x 1GbE Port 1x 1GbE dedicate IPMI Port |
|
Storage |
16x LFF SATA/SAS Drive slot or 27x SFF SAS/SATA HDD slot or 16个2.5英寸NVMe SSD硬盘,support hotswap |
|
Controler |
optional RAID controler（12G） 2G cache， RAID0/1/10/5/50/6/60 |
|
Pcie slot |
Max 8x PCIe 4.0 x8 or 3xPCIe 4.0 x16 +2xPCIe 4.0 x8 |
|
I/O |
2x Front & 2x Rear USB 3.0 1x PWR BTN with LED 1x Front & 1x Rear VGA 1x Rear COM port |
|
BMC |
IPMI 2.0 management |
|
PSU |
1+1 Redundant PSU 900W/2000W 100~240V AC，240V DC |
|
Temperature |
5~40℃ |
|
Dimensions |
447 mm*790 mm*86.1 mm |
Server

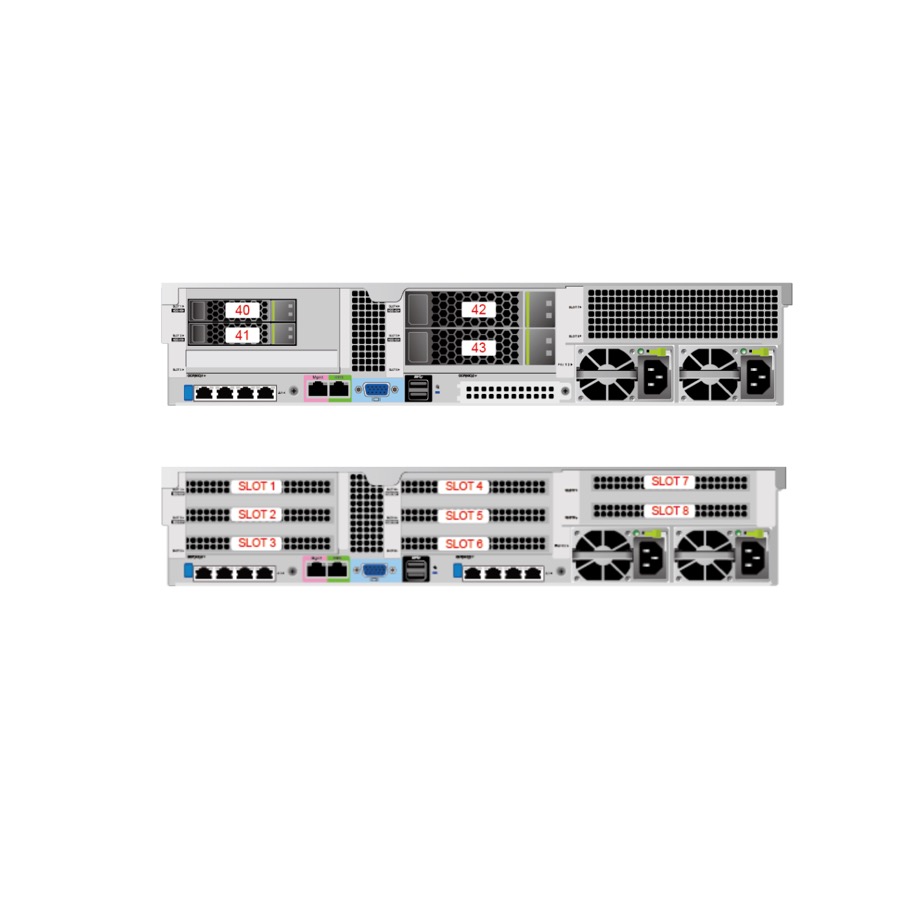

Kunpeng-R6240
R6240 is a 2U balanced rackmount server with 2 sockets based on Kunpeng920 CPUs of 64 cores and 2.6 GHz for each one main frequency, supporting up to 27 SAS/SATA HDDs or SSDs. TG225 B1 has high performance, low power and flexible scalability, applicable to the efficient acceleration business of big data analysis, SDS, Web, etc.
